Dimensions: 36 x 13 x 12 mm (1.42 x 0.51 x 0.47 Inche(s)).

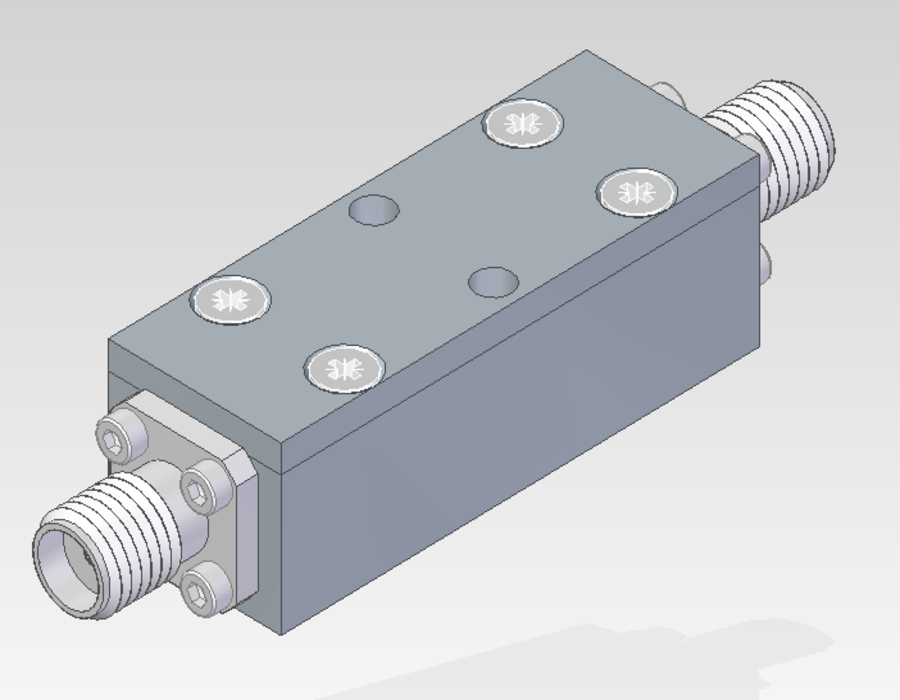

Low Pass Filter DC – 8 GHz
LPF-SS-8000-12000-24000-40-SF-SF
Part number: 011006
This low pass filter offers a passband from DC to 8000 MHz with 1.0 dB of insertion losses and a high rejection of 40 dB at 12000 MHz.
Fitted with SMA connectors, it offers a VSWR of 1.5:1 and a power handling of 2 W average.
lead time:
8-10 weeks
?Stock: 0
Additional Information
| Fmax (MHz) | 8000 |
|---|---|
| Insertion Loss (dB) | 1.0 |
| Rejection (dB) | 40 |
| Rejection Frequency (MHz) | 12000 |
| VSWR | 1.5:1 |
| Power Handling (W) | 2 |
| Connectors | SMA |
| ROHS Compliance | ROHS compliant against ROHS 10 substances (2015/863/EU) |
| Warranty | 3 years |
| Temperature Stability | Standard |
Product Description
Lowpass filter LPF-SS-8000-12000-24000-40-SF-SF is able to let your signal pass from DC to 8000 with very low insertion losses < 1.0 dB. This product allows you to cut off unwanted frequencies starting from 12000 MHz with a very high attenuation of 40 dB.
This filter (PN 011006) can handle power up to 2 W CW in a low form factor of 36 x 13 x 12 mm (1,42 x 0,51 x 0,47 Inche(s)).
This device is operational in a temperature range of -40 ° C to +85 ° C. It can handle a storage temperature ranging from -55 ° C to + 125 ° C.
This low-pas filter is ROHS compliant and it doesn’t contain REACH SVHCs. Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
Please feel free to ask if you need any customisation or answers to your questions about this product.
