Dimensions: 90.7 x 34 x 21 mm (3.57 x 1.34 x 0.83 Inche(s)).

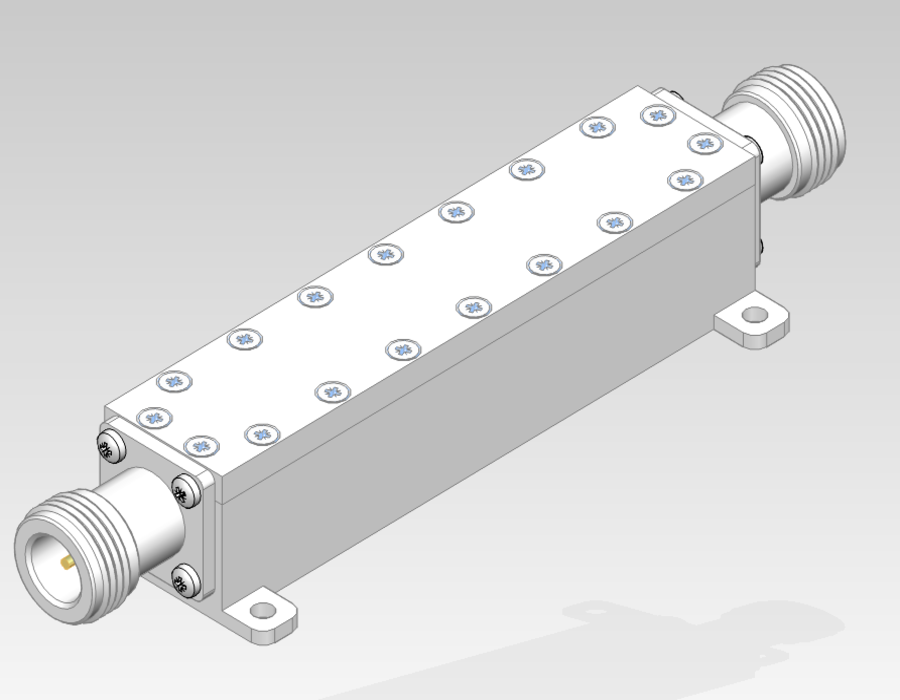

L Band Low Pass Filter 1600 MHz 10kW peak
LPF-CL-1800-12500-1.30-NF-NF
Part number: 011004
This low pass filter offers a passband from DC to 1600 MHz with 0.5 dB of insertion losses and a high rejection of 35 dB at 2400 MHz.
Fitted with N connectors, it offers a VSWR of 1.5:1 and a power handling of 1000 W average.
Stock: 0
Additional Information
| Fmax (MHz) | 1600 |
|---|---|
| Insertion Loss (dB) | 0.5 |
| Rejection (dB) | 35 |
| VSWR | 1.5:1 |
| Power Handling (W) | 1000 |
| Peak Power (kW) | 10 |
| Connectors | N |
| Warranty | 3 years |
| Rejection Frequency (MHz) | 2400 |
| Temperature Stability | Standard |
Product Description
Lowpass filter LPF-CL-1800-12500-1.30-NF-NF is able to let your signal pass from DC to 1600 with very low insertion losses < 0.5 dB. This product allows you to cut off unwanted frequencies starting from 2400 MHz with a very high attenuation of 35 dB.
This filter (PN 011004) can handle power up to 1000 W CW and 10 kW peak(Duty Cycle 10% < 200 µs) in a low form factor of 90,7 x 34 x 21 mm (3,57 x 1,34 x 0,83 Inche(s)).
This device is operational in a temperature range of -20 ° C to +50 ° C. It can handle a storage temperature ranging from -40 ° C to + 70 ° C.
This low-pas filter is ROHS compliant and it doesn’t contain REACH SVHCs. Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
Please feel free to ask if you need any customisation or answers to your questions about this product.
