Dimensions: 18.8 x 17.5 x 10.2 mm ( 0.74 x 0.69 x 0.4 Inch(es))
High Pass Filter 4 – 18 GHz – HIGH THERMAL PERFORMANCES
HPF-SS-3300-60-4000-18000-SF-SF
Part number: 800076615,00 €
This high pass filter provides a great VSWR (< 2.0:1) and loss insertion losses of 1.5 dB over its frequency range (4000 MHz to 18000 MHz). This product offers a high rejection of 60 dB from DC to 3300 MHz. Thanks to an high thermal performances substrate, its specifications are very consistent over its operating temperature range ( -40°C to +70°C).
lead time:
8-10 weeks
?Stock: 0
Additional Information
| Fmin (MHz) | 4000 |
|---|---|
| Fmax (MHz) | 18000 |
| Insertion Loss (dB) | 1.5 |
| Rejection Value (dB) | 60 |
| Rejection Frequency (MHz) | 3300 |
| VSWR | 2.0:1 |
| Power Handling (W) | 2 |
| Connectors | SMA |
| Weight (g) | 20 |
| ROHS | ROHS compliant against ROHS 10 substances (2015/863/EU) |
| Warranty | 3 years |
| Temperature Stability | High |
Product Description

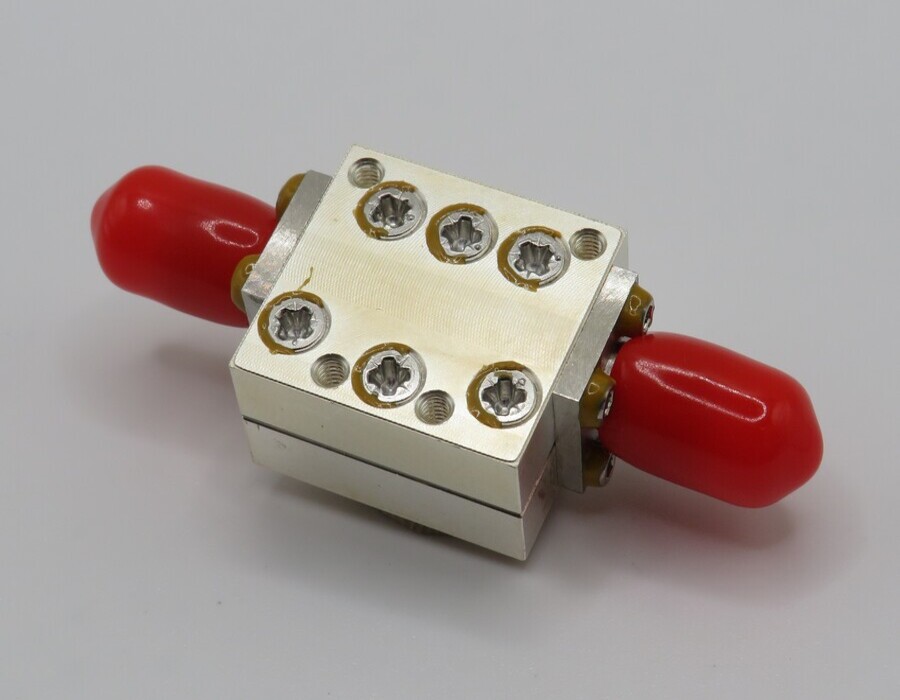

This Suspended Substrate High Pass Filter (PN 800076) allows you to suppress unwanted signals from DC to 3300 MHz with a strong attenuation of 60 dB min. Thanks to its low insertion losses (1.5 dB max.) and VSWR (2.0:1 max), it doesn’t deteriorate your signal within its frequency range (4000 to 18000 MHz).
Besides a low form factor of 18.8 x 17.5 x 10.2 mm ( 0.74 x 0.69 x 0.4 Inch(es)) this product can handle power up to 2 on a wide range of temperature ( -40°C to +70°C) while complying with all the specifications.
This high-pass filter does not contain any REACH SVHC and is ROHS compliant.
Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
Please feel free to ask if you need any customisation or answers to your questions about this product.
