Dimensions: 27.94 x 13.69 x 9.6 mm ( 1.1 x 0.54 x 0.38 Inch(es))
High Pass Filter 18 – 40 GHz
HPF-SS-16000-60-18000-40000-KF-KF
Part number: 011020
This high pass filter provides a great VSWR (< 2.0:1) and loss insertion losses of 1.5 dB over its frequency range (18000 MHz to 40000 MHz). This product offers a high rejection of 60 dB from DC to 16000 MHz. Fitted with K (2.92 mm) connectors it can handle up to 2 W CW.
Stock: 0
Additional Information
| Fmin (MHz) | 18000 |
|---|---|
| Fmax (MHz) | 40000 |
| Insertion Loss (dB) | 1.5 |
| Rejection Value (dB) | 60 |
| Rejection Frequency (MHz) | 16000 |
| VSWR | 2.0:1 |
| Power Handling (W) | 2 |
| Connectors | K (2.92 mm) |
| ROHS | ROHS compliant against ROHS 10 substances (2015/863/EU) |
| Warranty | 3 years |
| lead time | Request lead time |
| Temperature Stability | Standard |
Product Description

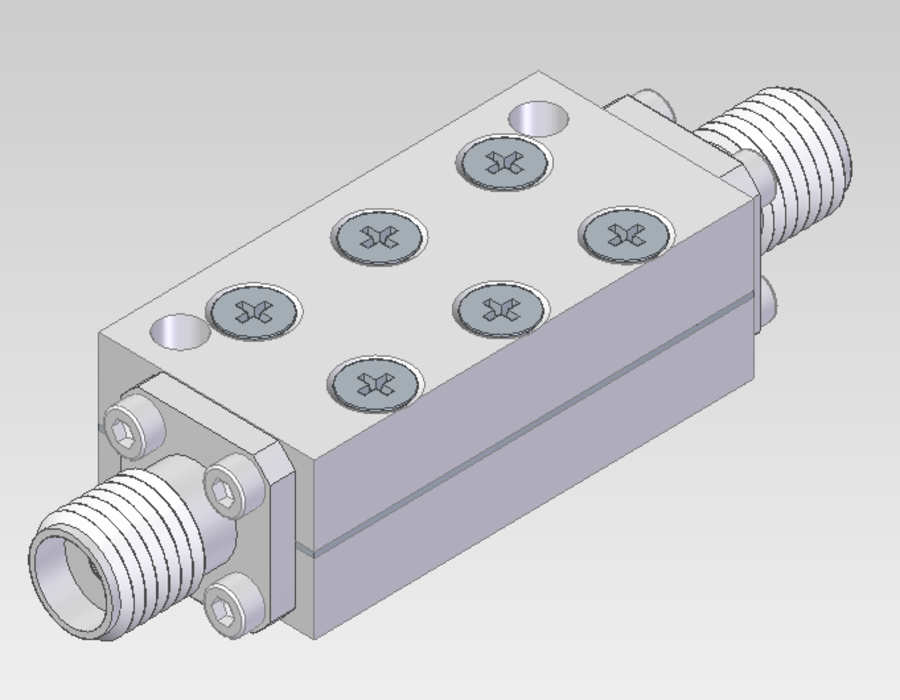

This Suspended Substrate High Pass Filter (PN 011020) allows you to suppress unwanted signals from DC to 16000 MHz with a strong attenuation of 60 dB min. Thanks to its low insertion losses (1.5 dB max.) and VSWR (2.0:1 max), it doesn’t deteriorate your signal within its frequency range (18000 to 40000 MHz).
Besides a low form factor of 27.94 x 13.69 x 9.6 mm ( 1.1 x 0.54 x 0.38 Inch(es)) this product can handle power up to 2 on a wide range of temperature ( -40°C to +85°C) while complying with all the specifications.
This high-pass filter does not contain any REACH SVHC and is ROHS compliant.
Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
Please feel free to ask if you need any customisation or answers to your questions about this product.
