Dimensions: 27.9 x 22.5 x 13.4 mm ( 1.1 x 0.89 x 0.53 Inch(es))

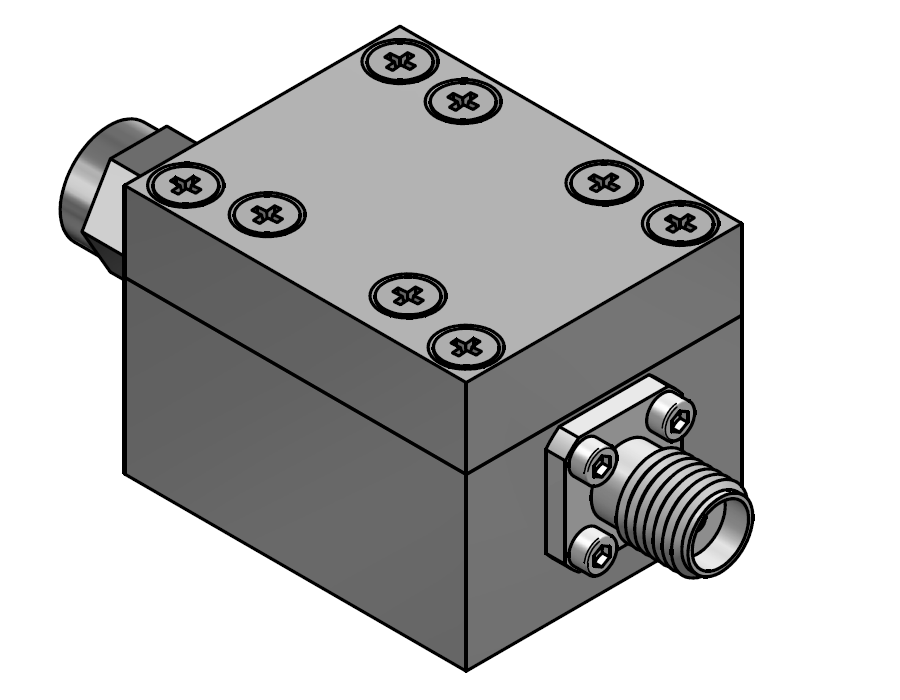

High Pass Filter 0.5 – 18 GHz
HPF-LP-410-40-500-18000-SF-SF
Part number: 800175
This high pass filter provides a great VSWR (< 2.0:1) and loss insertion losses of 1.4 dB over its frequency range (500 MHz to 18000 MHz). This product offers a high rejection of 40 dB from DC to 410 MHz. Fitted with SMA connectors it can handle up to 2 W CW.
Stock: 0
Additional Information
| Fmin (MHz) | 700 |
|---|---|
| Fmax (MHz) | 18000 |
| 3 dB Cutoff Frequency (MHz) | 500 |
| Insertion Loss (dB) | 1 |
| Rejection Value (dB) | 40 |
| Rejection Frequency (MHz) | 410 |
| VSWR | 2.0:1 |
| Power Handling (W) | 2 |
| Connectors | SMA |
| Weight (g) | 40 |
| ROHS | ROHS compliant against ROHS 10 substances (2015/863/EU) |
| Warranty | 3 years |
| Temperature Stability | Standard |
Product Description
This Lumped Elements High Pass Filter (PN 800175) allows you to suppress unwanted signals from DC to 410 MHz with a strong attenuation of 40 dB min. Thanks to its low insertion losses (1.0 dB max.) and VSWR (2.0:1 max), it doesn’t deteriorate your signal within its frequency range (500 to 18000 MHz).
Besides a low form factor of 27.9 x 22.5 x 13.4 mm ( 1.1 x 0.89 x 0.53 Inch(es)) this product can handle power up to 2 on a wide range of temperature ( -55°C to +85°C) while complying with all the specifications.
This high-pass filter does not contain any REACH SVHC and is ROHS compliant.
Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
Please feel free to ask if you need any customisation or answers to your questions about this product.
