Dimensions: 80 x 25 x 50 mm ( 3.15 x 0.98 x 1.97 Inch(es)).

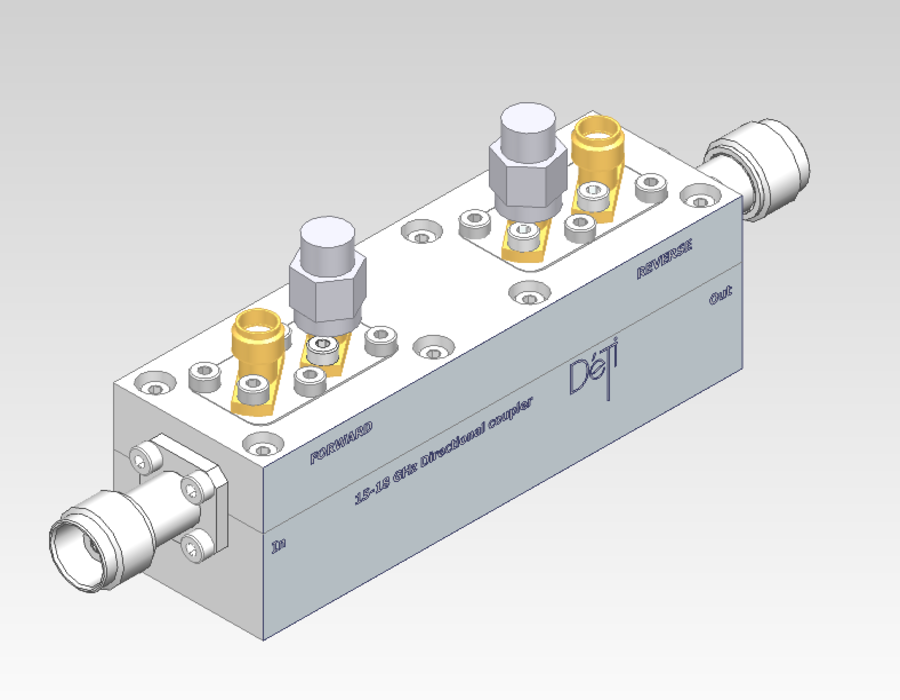

8000-12000 MHz Dual Directional Coupler – 35 dB – 150 W
CD-2-8000-12000-35-35-150-TF-TF-SF
Part number: 011270
This 35 dB low loss high power directional coupler covers the range 8000-12000 MHz and provides a great directivity > 12 dB. With only 0,5 dB of insertion loss, this product offers a good VSWR < 1.4:1 and can handle up to 150 W.
Stock: 0
Additional Information
| Fmin (MHz) | 8000 |
|---|---|
| Fmax (MHz) | 12000 |
| Coupling (dB) | 35 |
| Coupling value tolerance (dB) | 2 |
| Directivity (dB) | 12 |
| Insertion Losses (dB) | 0.5 |
| VSWR (Main line) | 1.5:1 |
| VSWR (Coupling Line) | 1.4:1 |
| Power Handling (W) | 150 |
| Peak Power (kW) | 0.5 |
| Connectors (Main Line) | TNC |
| Connectors (Coupling Line) | SMA |
| Warranty | 3 years |
Product Description
This Coaxial Coupler 011270 allows you to sample 35 dB of any of your signals ranging 8000 to 12000 MHz and with a continuous power < 150 W CW. Please note that this product can also deal with very high peak power up to 500 W. Thanks to its low insertion losses < 0,5 dB (excluding coupling losses) and VSWR ( < 1.5:1 on main line and 1.4:1 on the coupled line), this product does not disrupt the signal you want to sample. Furthermore it provides a good directivity > 12 dB which is related to the isolation between input port and coupling port.
Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
Please feel free to ask if you need any customisation or answers to your questions about this product.
