Dimensions: 234 x 180 x 71.4 mm ( 9.21 x 7.09 x 2.81 Inch(es)).

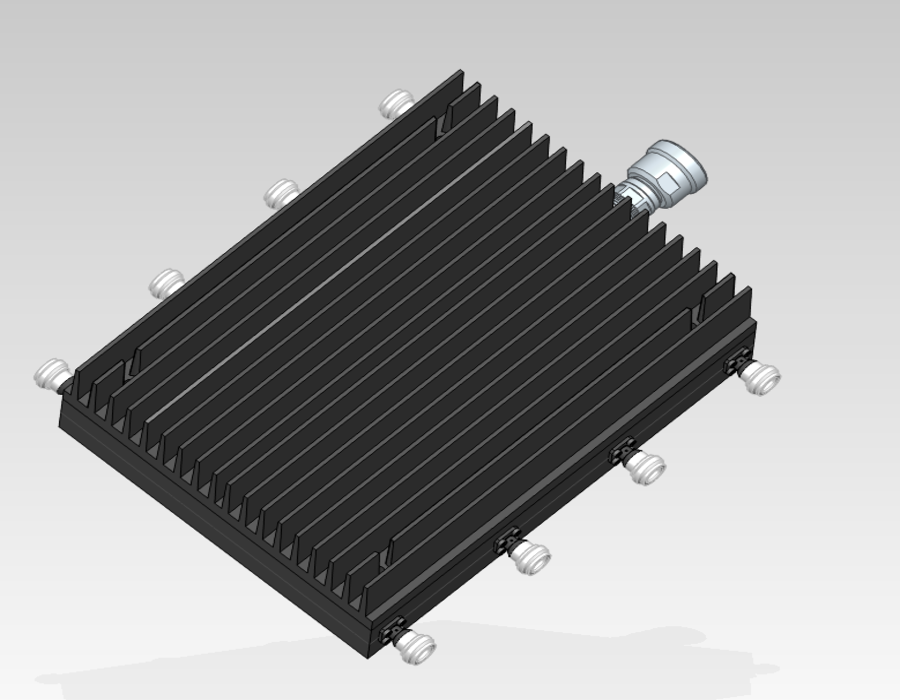

8-Way 5400 – 5900 MHz Power Combiner – 640 W
CO-8-5400-5900-640-NF-716F
Part number: 011136This 8-way Gysel power combiner covers the 5400-5900 MHz frequency range, and can output up to 640 W of continuous power. This device shows a great VSWR <1.5:1 and a high isolation of 18 dB. As all our products it is made in-house and comes a 3 years warranty.
Stock: 0
Additional Information
| Ways | 8 |
|---|---|
| Fmin (MHz) | 5400 |
| Fmax (MHz) | 5900 |
| Insertion losses (dB) | 1.3 |
| Input VSWR | 1.5:1 |
| Output VSWR | 1.5:1 |
| Isolation (dB) | 18 |
| Amplitude Balance (dB) | -/+0.5 |
| Phase Balance (°) | 5 |
| Power Handling (W) | 640 |
| Peak Power (kW) | 6.4 |
| Input Connectors | N |
| Output Connector | 7/16 |
| Warranty | 3 years |
Product Description
This Gysel power combiner (Part number: 011136) allows you to merge 8 in-phase signals into 1 on the 5400 – 5900 MHz frequency range. It can output up to 640 W CW on a large operating temperature range of -40°C to +55°C. Furthermore it allows you to get the best out of your sources by having a low VSWR(<1.5:1), and low insertion losses(<1.3dB) and low phase/amplitude balance. This rugged piece of equipment shows and high isolation (18 dB min) in order to prevent your sources from damaging one another. Moreover as a Gysel Power Combiner it can also be used as a power splitter with the same specifications.
