Dimensions: 220 x 145 x 31 mm ( 8.66 x 5.71 x 1.22 Inch(es)).

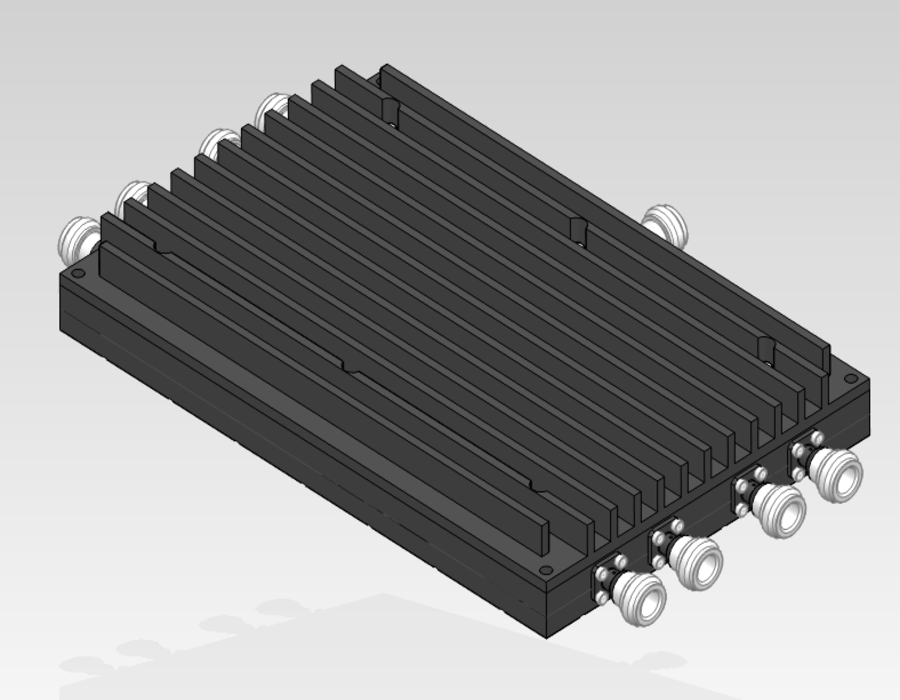

8-Way 2846 – 2866 MHz Power Combiner – 50 W
CO-8-2846-2866-50-NF-NF
Part number: 011123This 8-way Gysel power combiner covers the 2846-2866 MHz frequency range, and can output up to 50 W of continuous power. This device shows a great VSWR <1.4:1 and a high isolation of 18 dB. As all our products it is made in-house and comes a 3 years warranty.
Stock: 0
Additional Information
| Ways | 8 |
|---|---|
| Fmin (MHz) | 2846 |
| Fmax (MHz) | 2866 |
| Insertion losses (dB) | 0.6 |
| Input VSWR | 1.4:1 |
| Output VSWR | 1.4:1 |
| Isolation (dB) | 18 |
| Amplitude Balance (dB) | -/+ 0.25 |
| Phase Balance (°) | 5 |
| Power Handling (W) | 50 |
| Peak Power (kW) | 5 |
| Input Connectors | N |
| Output Connector | N |
| Warranty | 3 years |
Product Description
This Gysel power combiner (Part number: 011123) allows you to merge 8 in-phase signals into 1 on the 2846 – 2866 MHz frequency range. It can output up to 50 W CW on a large operating temperature range of 0°C to +50°C. Furthermore it allows you to get the best out of your sources by having a low VSWR(<1.4:1), and low insertion losses(<0.6dB) and low phase/amplitude balance. This rugged piece of equipment shows and high isolation (18 dB min) in order to prevent your sources from damaging one another. Moreover as a Gysel Power Combiner it can also be used as a power splitter with the same specifications.
