Dimensions: 124 x 20 x 12 mm ( 4.88 x 0.79 x 0.47 Inch(es)).
400-4000 MHz Directional Coupler – 10 dB – 50 W
CD-1-400-4000-10-50-SF-SF-SF

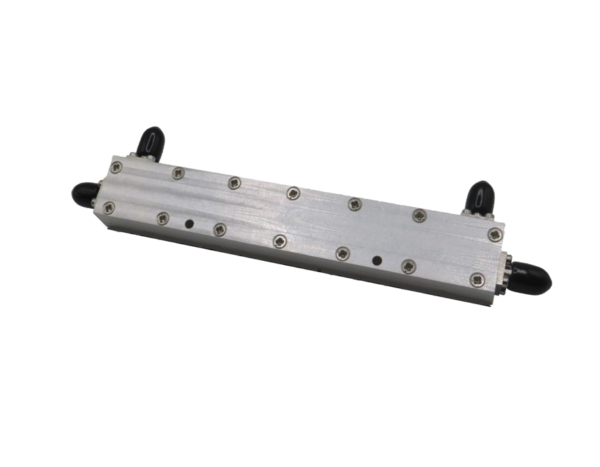

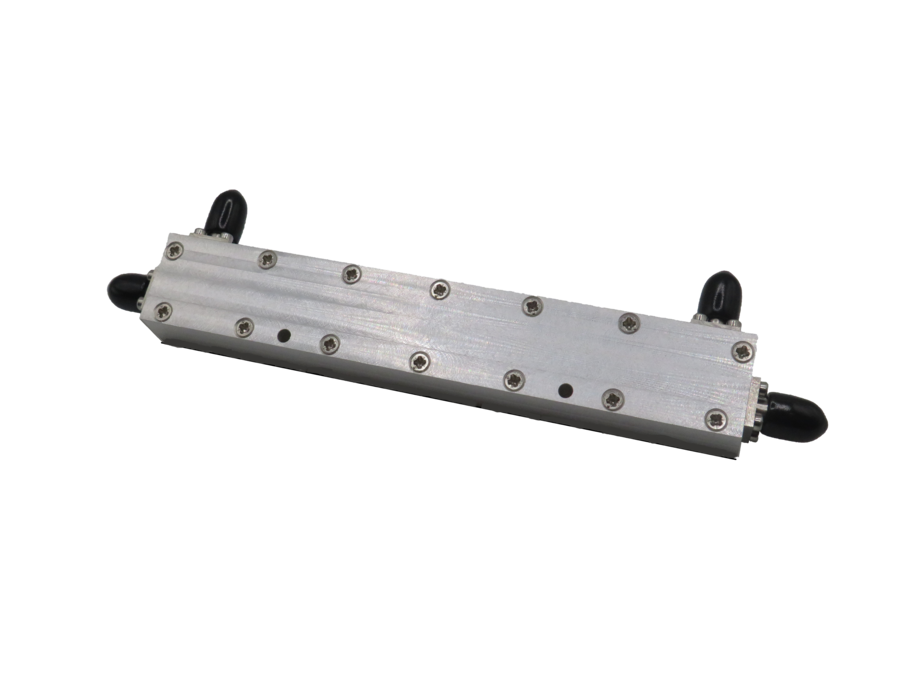

Part number: 001665This 10 dB stripline directional coupler covers the range 400-4000 MHz and provides a great directivity > 20 dB. With only 0.75 dB of insertion loss. this product offers a good VSWR < 1.4:1 and can handle up to 50 W.
lead time:
8-10 weeks
?Stock: 2
Additional Information
| Fmin (MHz) | 400 |
|---|---|
| Fmax (MHz) | 4000 |
| Coupling (dB) | 10 |
| Directivity (dB) | 20 |
| Insertion Losses (dB) | 0.75 |
| VSWR (Main line) | 1.4:1 |
| VSWR (Coupling Line) | 1.4:1 |
| Power Handling (W CW) | 50 |
| Connector (Main Line) | SMA |
| Connectors (Coupling Line) | SMA |
| ROHS | ROHS compliant against RoHS 10 substances (2015/863/EU) |
| Warranty | 3 years |
Product Description
This Stripline Coupler 001665 allows you to sample 10 dB of any of your signals ranging 400 to 4000 MHz and with a continuous power < 50 W. Thanks to its low insertion losses < 0.75 dB (excluding coupling losses) and VSWR ( < 1.4:1 on main line and 1.4:1 on the coupled line). this product does not disrupt the signal you want to sample. Furthermore it provides a good directivity > 20 dB which is related to the isolation between input port and coupling port.
Because it is made on-site. DETI can ensure a quality manufacturing. therefore offering a 3 year warranty.
Please feel free to ask if you need any customisation or answers to your questions about this product.
