Dimensions: 113 x 26.4 x 20 mm ( 4.45 x 1.04 x 0.79 Inch(es)).

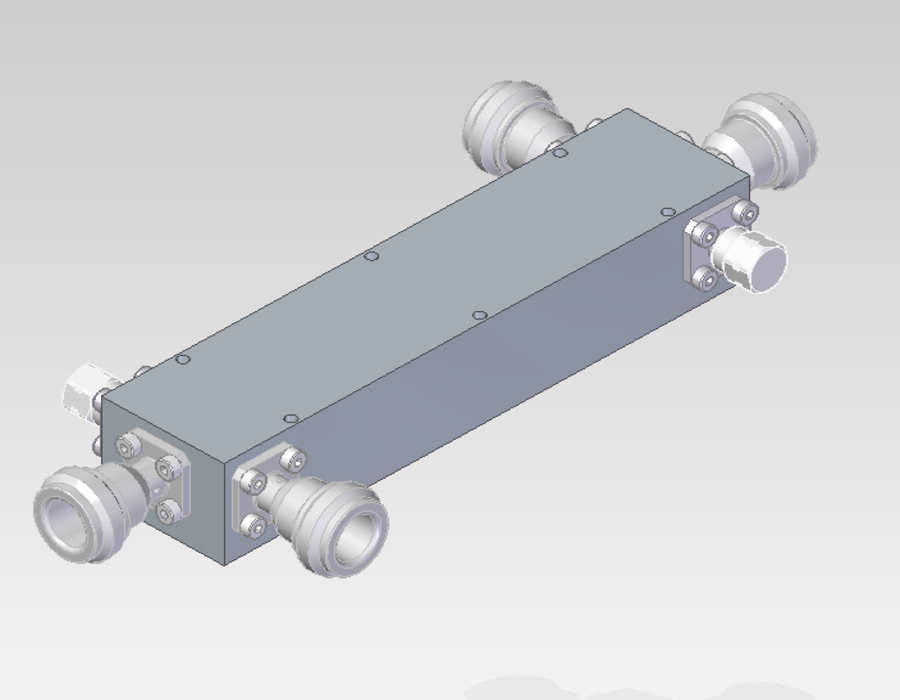

400-2000 MHz Dual Directional Coupler – 40 dB – 200 W
CD-2-400-2000-40-40-200-NF-NF-NF
Part number: 011091This 40 dB low loss high power directional coupler covers the range 400-2000 MHz and provides a great directivity > 18 dB. With only 0,2 dB of insertion loss, this product offers a good VSWR < 1.3:1 and can handle up to 200 W.
Stock: 0
Additional Information
| Fmin (MHz) | 400 |
|---|---|
| Fmax (MHz) | 2000 |
| Coupling (dB) | 40 |
| Coupling value tolerance (dB) | 1 |
| Directivity (dB) | 18 |
| Insertion Losses (dB) | 0.2 |
| VSWR (Main line) | 1.3:1 |
| VSWR (Coupling Line) | 1.3:1 |
| Power Handling (W) | 200 |
| Connectors (Main Line) | N |
| Connectors (Coupling Line) | N |
| ROHS | ROHS compliant against RoHS 10 substances (2015/863/EU) |
| Warranty | 3 years |
Product Description
This Coaxial Coupler 011091 allows you to sample 40 dB of any of your signals ranging 400 to 2000 MHz and with a continuous power < 200 W CW. Thanks to its low insertion losses < 0,2 dB (excluding coupling losses) and VSWR ( < 1.3:1 on main line and 1.3:1 on the coupled line), this product does not disrupt the signal you want to sample. Furthermore it provides a good directivity > 18 dB which is related to the isolation between input port and coupling port.
Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
Please feel free to ask if you need any customisation or answers to your questions about this product.
