Dimensions: 172 x 160 x 80 mm ( 6.8 x 6.3 x 3.15 Inches)

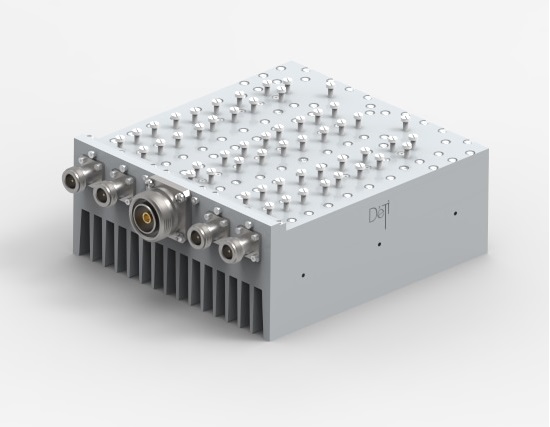

4-Ways Power Combiner 0.4 – 6 GHz – 1000 W
CO-4-400-6000-800-NF-716F
Part number: 800297
This 4-way wide-band Wilkinson power combiner covers the 400-6000 MHz frequency range, and can output up to 1000 W of continuous power. This device shows a great VSWR <1.8:1 and a high isolation of 12 dB. As all our products it is made in-house and comes a 3 years warranty.
Stock: 0
Additional Information
| Ways | 4 |
|---|---|
| Fmin (MHz) | 400 |
| Fmax (MHz) | 6000 |
| Insertion Loss (dB) | 1.2 |
| VSWR | 1.8:1 |
| Isolation (dB) | 12 |
| Amplitude Balance (dB) | 0.4 |
| Phase Balance (°) | 5 |
| Power Handling (W) | 1000 |
| Input Connectors | N |
| Output Connector | 7/16 |
| Warranty | 3 years |
Product Description
This power combiner (PN 800297) allows you to merge 4 in-phase signals into 1 on the 400 – 6000 MHz frequency range. It can cope with up to 250 W CW per input on a large operating temperature range of 0°C to +40°C. Furthermore it allows you to get the best out of your sources by having a low VSWR(<1.8:1), and low insertion losses(<1.2dB) and low phase/amplitude balance. This rugged piece of equipment shows and high isolation (12 dB min) in order to prevent your sources from damaging one another. Moreover as a Wilkinson Power Combiner it can also be used as a power splitter with the same specifications.
