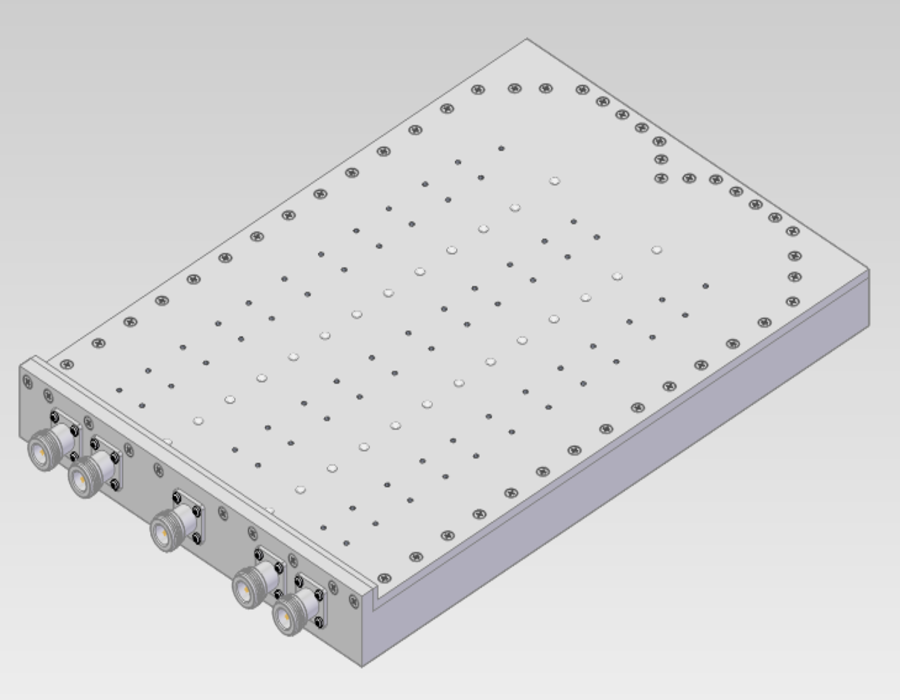

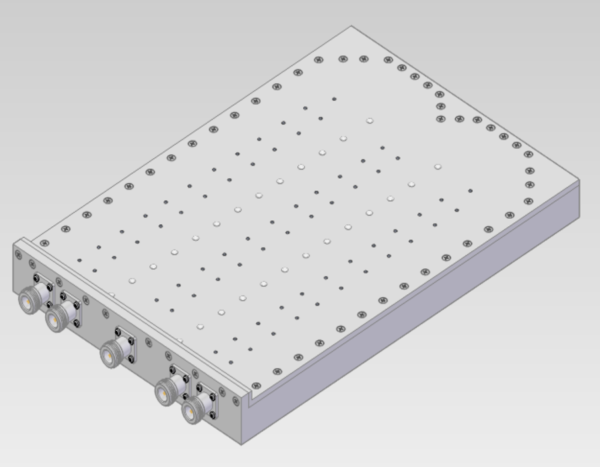

Dimensions: 320 x 216 x 33 mm ( 12.6 x 8.5 x 1.3 Inch(es)).
4-Way 700 – 1500 MHz Power Combiner – 1000 W
CO-4-700-1500-1000-NF-NF
Part number: 011156This 4-way Wilkinson power combiner covers the 700-1500 MHz frequency range, and can output up to 1000 W of continuous power. This device shows a great VSWR <1.35:1 and a high isolation of 15 dB. As all our products it is made in-house and comes a 3 years warranty.
Stock: 0
Additional Information
| Ways | 4 |
|---|---|
| Fmin (MHz) | 700 |
| Fmax (MHz) | 1500 |
| Insertion losses (dB) | 0.4 |
| Input VSWR | 1.35:1 |
| Output VSWR | 1.35:1 |
| Isolation (dB) | 15 |
| Amplitude Balance (dB) | 0.15 |
| Phase Balance (°) | 2 |
| Power Handling (W) | 1000 |
| Input Connectors | N |
| Output Connector | N |
| Warranty | 3 years |
Product Description
This power combiner (PN 011156) allows you to merge 4 in-phase signals into 1 on the 700 – 1500 MHz frequency range. It can output up to 1000 W CW on a large operating temperature range of 0°C to +40°C. Furthermore it allows you to get the best out of your sources by having a low VSWR(<1.35:1), and low insertion losses(<0.4dB) and low phase/amplitude balance. This rugged piece of equipment shows and high isolation (15 dB min) in order to prevent your sources from damaging one another. Moreover as a Wilkinson Power Combiner it can also be used as a power splitter with the same specifications.
