Dimensions: 100 x 200 x 73 mm ( 3.94 x 7.87 x 2.87 Inch(es)).

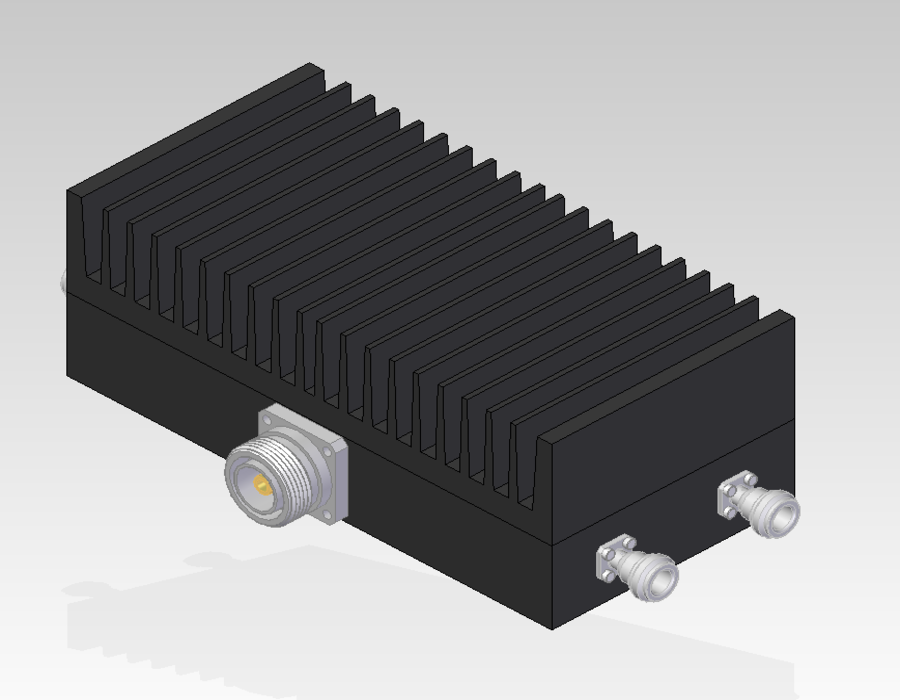

4-Way 4400 – 5000 MHz Power Combiner – 1000 W
CO-4-4400-5000-1000-716F-NF
Part number: 011132This 4-way Gysel power combiner covers the 4400-5000 MHz frequency range, and can output up to 1000 W of continuous power. This device shows a great VSWR <1.5:1 and a high isolation of 15 dB. As all our products it is made in-house and comes a 3 years warranty.
Stock: 0
Additional Information
| Ways | 4 |
|---|---|
| Fmin (MHz) | 4400 |
| Fmax (MHz) | 5000 |
| Insertion losses (dB) | 0.7 |
| Input VSWR | 1.5:1 |
| Output VSWR | 1.5:1 |
| Isolation (dB) | 15 |
| Amplitude Balance (dB) | -/+ 0.2 |
| Phase Balance (°) | 5 |
| Power Handling (W) | 1000 |
| Input Connectors | N |
| Output Connector | 7/16 |
| Warranty | 3 years |
Product Description
This Gysel power combiner (Part number: 011132) allows you to merge 4 in-phase signals into 1 on the 4400 – 5000 MHz frequency range. It can output up to 1000 W CW on a large operating temperature range of -40°C to +85°C. Furthermore it allows you to get the best out of your sources by having a low VSWR(<1.5:1), and low insertion losses(<0.7dB) and low phase/amplitude balance. This rugged piece of equipment shows and high isolation (15 dB min) in order to prevent your sources from damaging one another. Moreover as a Gysel Power Combiner it can also be used as a power splitter with the same specifications.
