Dimensions: 76.2 x 50.8 x 10.3 mm ( 3 x 2 x 0.41 Inch(es)).

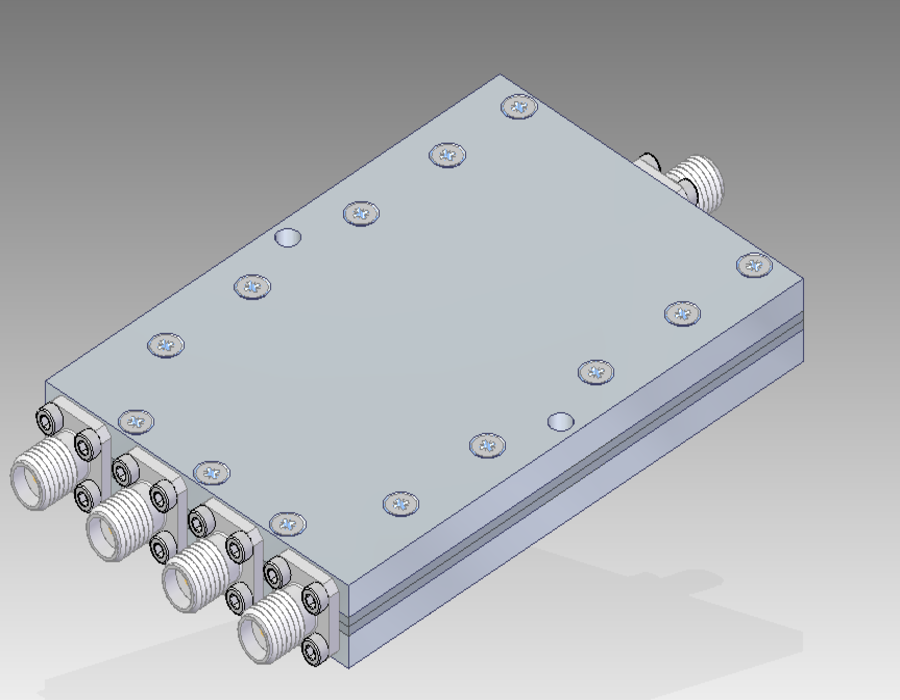

4-Way 3400 – 3800 MHz Power Combiner – 8 W
CO-4-3400-3800-2-SF-SF
Part number: 011259This 4-way Wilkinson power combiner covers the 3400-3800 MHz frequency range, and can output up to 8 W of continuous power. This device shows a great VSWR <1.4:1 and a high isolation of 23 dB. As all our products it is made in-house and comes a 3 years warranty.
Stock: 0
Additional Information
| Ways | 4 |
|---|---|
| Fmin (MHz) | 3400 |
| Fmax (MHz) | 3800 |
| Insertion losses (dB) | 0.5 |
| Input VSWR | 1.4:1 |
| Output VSWR | 1.4:1 |
| Isolation (dB) | 23 |
| Amplitude Balance (dB) | -/+0.5 |
| Phase Balance (°) | 6 |
| Power Handling (W) | 8 |
| Input Connectors | SMA |
| Output Connector | SMA |
| ROHS | ROHS compliant against RoHS 10 substances (2015/863/EU) |
| MIL-STD | MIL-STD 202 compliant |
| Warranty | 3 years |
Product Description
This power combiner (Part number: 011259) allows you to merge 4 in-phase signals into 1 on the 3400 – 3800 MHz frequency range. It can output up to 8 W CW on a large operating temperature range of -40°C to +85°C. Furthermore it allows you to get the best out of your sources by having a low VSWR(<1.4:1), and low insertion losses(<0.5dB) and low phase/amplitude balance. This rugged piece of equipment shows and high isolation (23 dB min) in order to prevent your sources from damaging one another. Moreover as a Wilkinson Power Combiner it can also be used as a power splitter with the same specifications.
