Dimensions: 50.05 x 169.4 x 31.55 mm ( 1.97 x 6.67 x 1.24 Inch(es)).

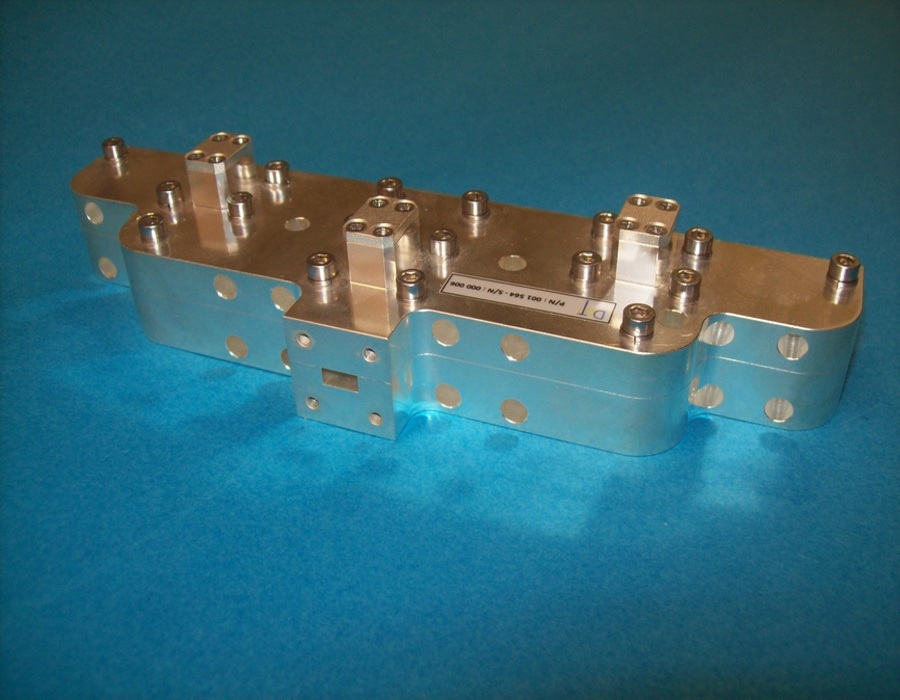

4-Way 27.5 – 31 GHz Power Combiner – 32 W
CO-4-27500-31000-8-WR28
Part number: 001564This 4-way power combiner covers the 27.5-31 GHz frequency range, and can output up to 32 W of continuous power. This device shows a great VSWR <1.25:1 and a high isolation of 18 dB. As all our products it is made in-house and comes a 3 years warranty.
Stock: 1
Additional Information
| Ways | 4 |
|---|---|
| Fmin (MHz) | 27500 |
| Fmax (MHz) | 31000 |
| Insertion losses (dB) | 0.4 |
| Input VSWR | 1.25:1 |
| Output VSWR | 1.25:1 |
| Isolation (dB) | 18 |
| Amplitude Balance (dB) | 0.7 |
| Phase Balance (°) | 5 |
| Power Handling (W) | 32 |
| Input Connectors | WR28 |
| Output Connector | WR28 |
| Warranty | 3 years |
Product Description
This power combiner (PN 001564) allows you to merge 4 in-phase signals into 1 on the 27.5 – 31 GHz frequency range. It can output up to 32 W CW on a large operating temperature range of -40°C to +70°C. Furthermore it allows you to get the best out of your sources by having a low VSWR(<1.25:1), and low insertion losses(<0.4dB) and low phase/amplitude balance. This rugged piece of equipment shows and high isolation (18 dB min) in order to prevent your sources from damaging one another. Moreover as a Magic Tee Power combiner it can also be used as a power splitter with the same specifications.
