Dimensions: 271 x 187 x 73.1 mm ( 10.67 x 7.36 x 2.88 Inch(es)).
4-Way 2020 – 2120 MHz Power Combiner – 800 W
CO-4-2020-2120-200-NF-716F

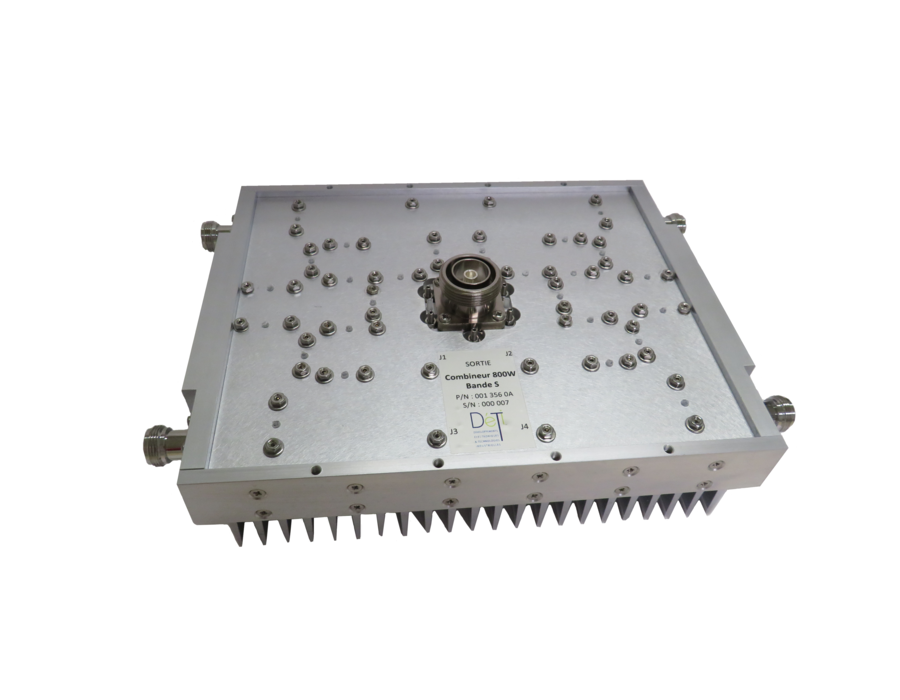

Part number: 001356This 4-way Gysel power combiner covers the 2020-2120 MHz frequency range, and can output up to 800 W of continuous power. This device shows a great VSWR <1.25:1 and a high isolation of 20 dB. As all our products it is made in-house and comes a 3 years warranty.
Stock: 0
Additional Information
| Ways | 4 |
|---|---|
| Fmin (MHz) | 2020 |
| Fmax (MHz) | 2120 |
| Insertion losses (dB) | 0.2 |
| Input VSWR | 1.25:1 |
| Output VSWR | 1.25:1 |
| Isolation (dB) | 20 |
| Amplitude Balance (dB) | -/+ 0.3 |
| Phase Balance (°) | 7 |
| Power Handling (W) | 800 |
| Input Connectors | N |
| Output Connector | 7/16 |
| Warranty | 3 years |
Product Description
This Gysel power combiner (Part number: 001356) allows you to merge 4 in-phase signals into 1 on the 2020 – 2120 MHz frequency range. It can output up to 800 W CW on a large operating temperature range of 0°C to +50°C. Furthermore it allows you to get the best out of your sources by having a low VSWR(<1.25:1), and low insertion losses(<0.2dB) and low phase/amplitude balance. This rugged piece of equipment shows and high isolation (20 dB min) in order to prevent your sources from damaging one another. Moreover as a Gysel Power Combiner it can also be used as a power splitter with the same specifications.
