Dimensions: 25.7 x 16 x 10.2 mm (1.0 x 0.63 x 0.4 inch(es))

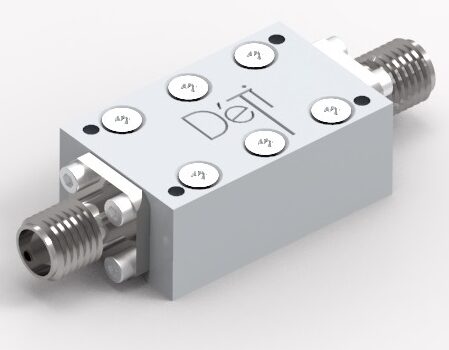

27.5-31 Band Stop Filter
BSF-IP-27500-31000-40-KF-KF
Part number: 800295
This Notch Filter 800295 uses an innovative hybrid technology (planar & mechanical structure with small factory tuning screw). It allows you to sharply reject (40 dB) the 27.5 – 31 GHz frequency range while avoiding to degrade your signal from 18 to 26.5 GHz and from 32 to 40 GHz. Indeed it show very little insertion losses (2.5 dB) and a VSWR of 2:1 max. Designed for naval applications it can deal with severe environments thanks to its silver plated aluminium case.
Stock: 0
Additional Information
| Fmin rejected (MHz) | 27500 |
|---|---|
| Fmax rejected (MHz) | 31000 |
| Rejection Value (dB) | 40 |
| Passband 1 Fmin (MHz) | 18000 |
| Passband 1 Fmax (MHz) | 26500 |
| Passband 2 Fmin (MHz) | 32000 |
| Passband 2 Fmax (MHz) | 40000 |
| Insertion Loss (dB) | 2.5 |
| VSWR | 2.0:1 |
| Power Handling (W) | 1 |
| Connectors | K (2.92 mm) |
| Warranty | 3 years |
| ROHS | ROHS compliant against RoHS 10 substances (2015/863/EU) |
Product Description
This Notch Filter 800295 uses an innovative hybrid technology (planar & mechanical structure with small factory tuning screw). It allows you to sharply reject (40 dB) the 27.5 – 31 GHz frequency range while avoiding to degrade your signal from 18 to 26.5 GHz and from 32 to 40 GHz. Indeed it shows very little insertion losses (2.5 dB) and a VSWR of 2:1 max. Designed for naval and airborne applications it can deal with severe environments thanks to its silver plated aluminium case.
