Dimensions: 58.6 x 50.8 x 34 mm ( 2.31 x 2 x 1.34 Inch(es)).
2000-4000 MHz Dual Directional Coupler – 30 dB – 500 W
CD-2-2000-4000-30-30-716M-716F-SF
Part number: 800046This 30 dB low loss high power directional coupler covers the range 2000-4000 MHz and provides a great directivity > 20 dB. With only 0,2 dB of insertion loss, this product offers a good VSWR < 1.4:1 and can handle up to 500 W.
Stock: 1
Additional Information
| Fmin (MHz) | 2000 |
|---|---|
| Fmax (MHz) | 4000 |
| Coupling (dB) | 30 |
| Coupling value tolerance (dB) | 1 |
| Directivity (dB) | 20 |
| Insertion Losses (dB) | 0.2 |
| VSWR (Main line) | 1.4:1 |
| VSWR (Coupling Line) | 1.4:1 |
| Power Handling (W) | 500 |
| Peak Power (kW) | 10 |
| Connectors (Coupling Line) | SMA |
| Weight (g) | 400 |
| Warranty | 3 years |
Product Description

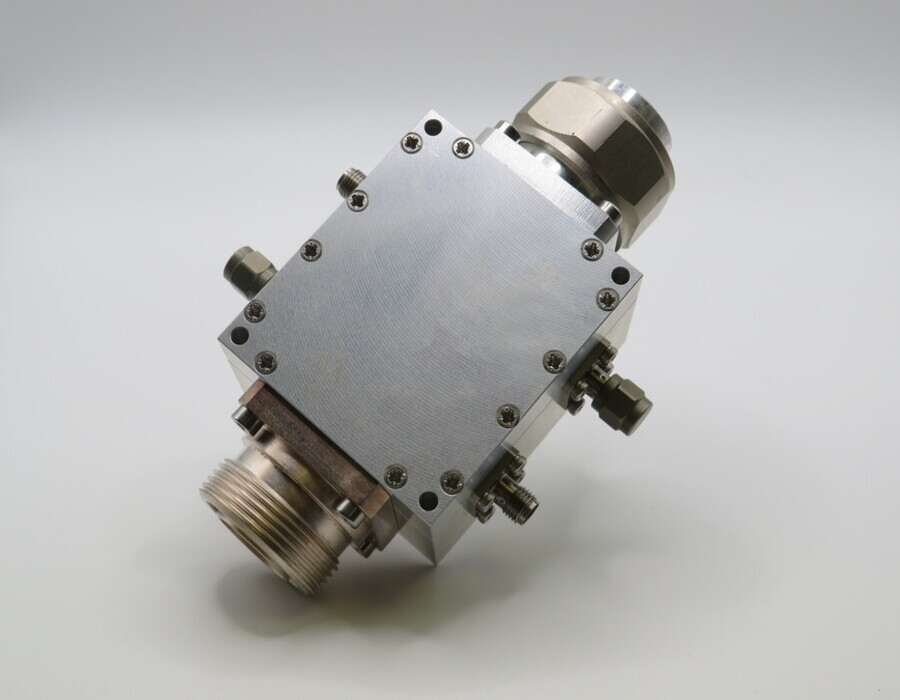

This Coaxial Coupler 800046 allows you to sample 30 dB of any of your signals ranging 2000 to 4000 MHz and with a continuous power < 500 W CW. Please note that this product can also deal with very high peak power up to 10 kW. Thanks to its low insertion losses < 0,2 dB (excluding coupling losses) and VSWR ( < 1.4:1 on main line and 1.4:1 on the coupled line), this product does not disrupt the signal you want to sample. Furthermore it provides a good directivity > 20 dB which is related to the isolation between input port and coupling port.
Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
Please feel free to ask if you need any customisation or answers to your questions about this product.
