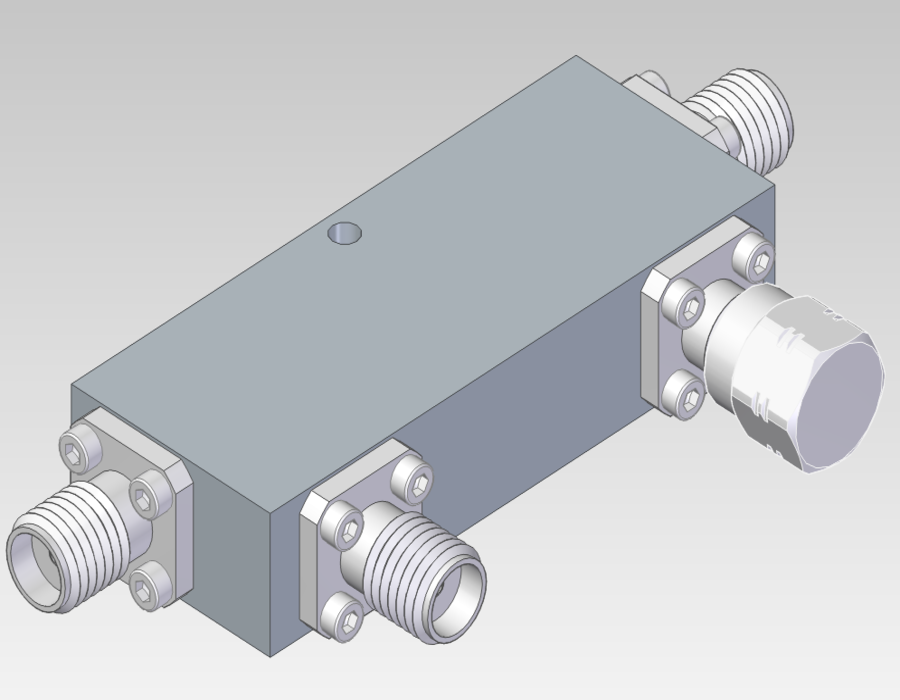

Dimensions: 45.7 x 18 x 10 mm ( 1.8 x 0.71 x 0.39 Inch(es)).
2000-4000 MHz Directional Coupler – 6 dB – 30 W
CD-1-2000-4000-6-30-SF-SF-SF
Part number: 011052This 6 dB stripline directional coupler covers the range 2000-4000 MHz and provides a great directivity > 22 dB. With only 0,3 dB of insertion loss, this product offers a good VSWR < 1.2:1 and can handle up to 30 W.
lead time:
8-10 weeks
?Stock: 0
Additional Information
| Fmin (MHz) | 2000 |
|---|---|
| Fmax (MHz) | 4000 |
| Coupling (dB) | 6 |
| Coupling value tolerance | 1 |
| Directivity (dB) | 22 |
| Insertion Losses (dB) | 0.3 |
| VSWR (Main line) | 1.2:1 |
| VSWR (Coupling Line) | 1.2:1 |
| Power Handling (W) | 30 |
| Peak Power (kW) | 5 |
| Connectors (Main Line) | SMA |
| Connectors (Coupling Line) | SMA |
| ROHS | ROHS compliant against RoHS 10 substances (2015/863/EU) |
| MIL-STD | Compliant |
| Warranty | 3 years |
Product Description
This Stripline Coupler 011052 allows you to sample 6 dB of any of your signals ranging 2000 to 4000 MHz and with a continuous power < 30 W. Thanks to its low insertion losses < 0,3 dB (excluding coupling losses) and VSWR ( < 1.2:1 on main line and 1.2:1 on the coupled line), this product does not disrupt the signal you want to sample. Furthermore it provides a good directivity > 22 dB which is related to the isolation between input port and coupling port.
Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
Please feel free to ask if you need any customisation or answers to your questions about this product.
