Dimensions: 25.4 x 25.4 x 10 mm (1 x 1 x 0.39 Inche(s)).

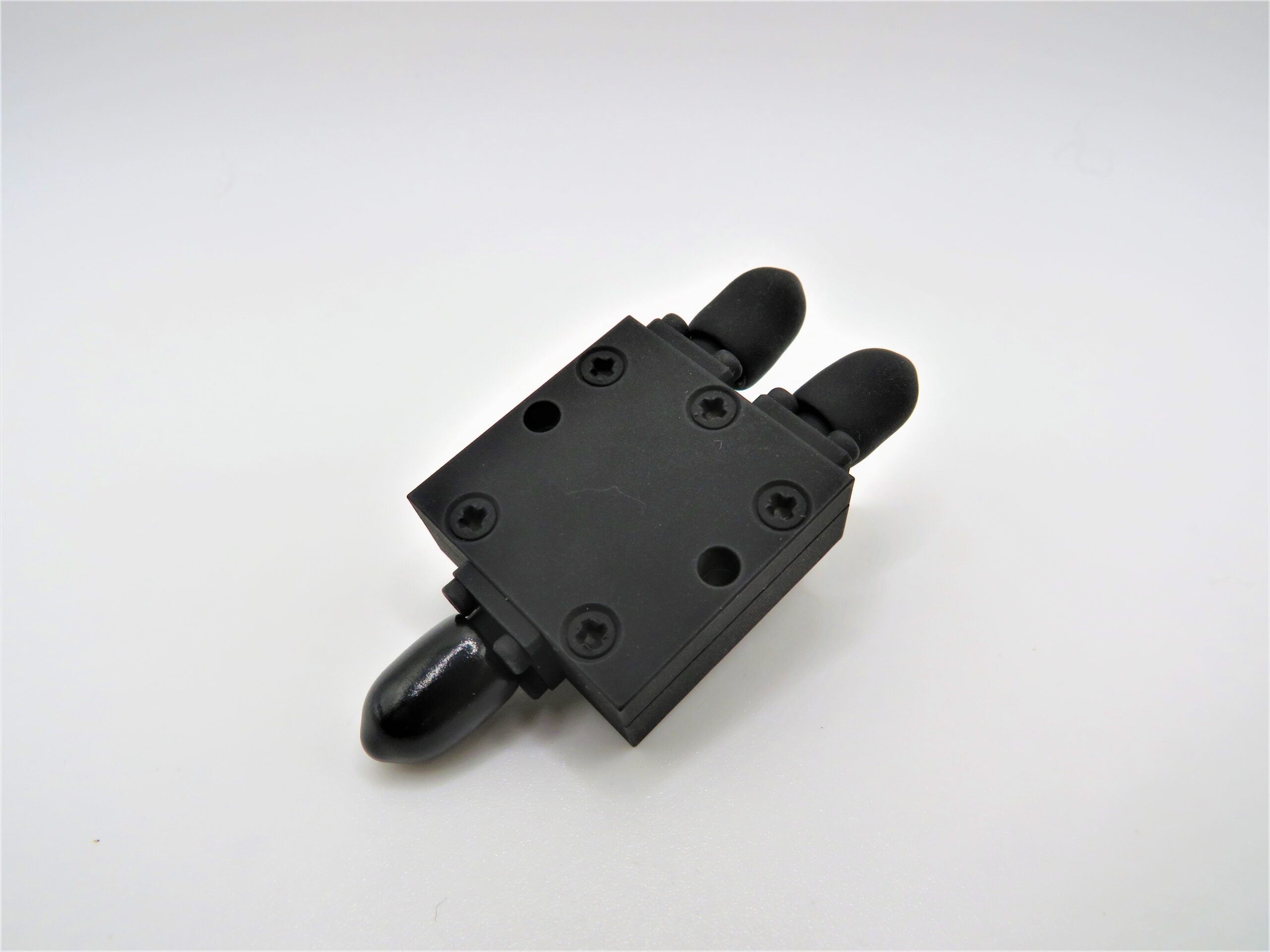

2-Way Power Divider 25-27 GHz
DI-2-25000-27000-10-KF-KF
Part number: 011194This 2-Way power divider, based on a Wilkinson stripline technology covers a frequency band from 25000 up to 27000 MHz.
Compact and robust it offers an excellent isolation and low insertion losses. For both commercial and military applications, this product is MIL-STD-202 compliant.
lead time:
8-10 weeks
?Stock: 0
Additional Information
| Ways | 2 |
|---|---|
| Fmin (MHz) | 25000 |
| Fmax (MHz) | 27000 |
| Insertion Loss(dB) | 1 |
| AmplitudeBalance(dB) | 0.5 |
| PhaseBalance(Degree) | 6 |
| Isolation(dB) | 18 |
| VSWR | 1.6:1 |
| Power Handling (W) | 10 |
| Connectors | K (2.92 mm) |
| Weight (g) | 30 |
| ROHS Compliance | ROHS compliant against ROHS 10 substances (2015/863/EU) |
| MIL-STD | MIL-STD-202 compliant |
| Warranty | 3 years |
Product Description
This 2-Way power divider 011194 covers a frequency band from 25000 up to 27000 MHz. Compact and robust thanks to its Wilkinson stripline technology, it offers insertion losses of 1 dB, a amplitude balance of 0.5 dB, a phase balance of 6 degrees, an isolation of 18 dB and a VSWR of 1.6:1.
The power handling is 10 W average on the input port when output ports are loaded with VSWR better then 1.20:1. The operating temperature covers a range from -40°C up to +85°C. The storage temperature range is -55°C to +125°C.
This product handles mechanical shocks in compliance with MIL-STD-202: Method 213 – Test condition C (100g 6ms ½), Sinus vibrations in compliance with MIL-STD-202: Method 204D – Test condition A (10g / 10-2000Hz), Thermal shocks in compliance with MIL-STD-202: Method 107G – Test condition A (-40°C/+85°C) and humidity in compliance with MIL-STD-202: Method 103 – Test condition B (95% 96H).
