Dimensions: 290 x 72 x 33 mm ( 11.42 x 2.83 x 1.3 Inch(es)).

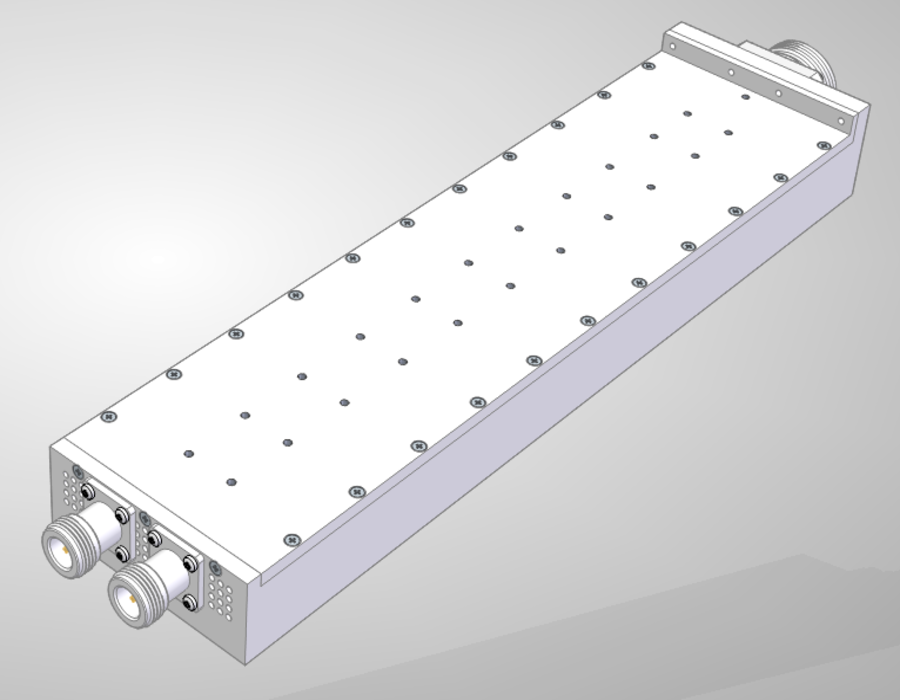

2-Way 800 – 4000 MHz Power Combiner – 1000 W
CO-2-800-4200-500-NF-716F
Part number: 001558This 2-way Wilkinson power combiner covers the 800-4000 MHz frequency range, and can output up to 1000 W of continuous power. This device shows a great VSWR <1.5:1 and a high isolation of 12 dB. As all our products it is made in-house and comes a 3 years warranty.
Stock: 0
Additional Information
| Ways | 2 |
|---|---|
| Fmin (MHz) | 800 |
| Fmax (MHz) | 4000 |
| Insertion losses (dB) | 0.3 |
| Input VSWR | 1.5:1 |
| Output VSWR | 1.5:1 |
| Isolation (dB) | 12 |
| Amplitude Balance (dB) | -/+ 0.1 |
| Phase Balance (°) | 5 |
| Power Handling (W) | 1000 |
| Input Connectors | N |
| Output Connector | 7/16 |
| Warranty | 3 years |
Product Description
This power combiner (PN 001558) allows you to merge 2 in-phase signals into 1 on the 800 – 4000 MHz frequency range. It can output up to 1000 W CW on a large operating temperature range of 0°C to +40°C. Furthermore it allows you to get the best out of your sources by having a low VSWR(<1.5:1), and low insertion losses(<0.3dB) and low phase/amplitude balance. This rugged piece of equipment shows and high isolation (12 dB min) in order to prevent your sources from damaging one another. Moreover as a Wilkinson Power Combiner it can also be used as a power splitter with the same specifications.
