Dimensions: 211 x 125 x 50.4 mm ( 8.31 x 4.92 x 1.98 Inch(es)).

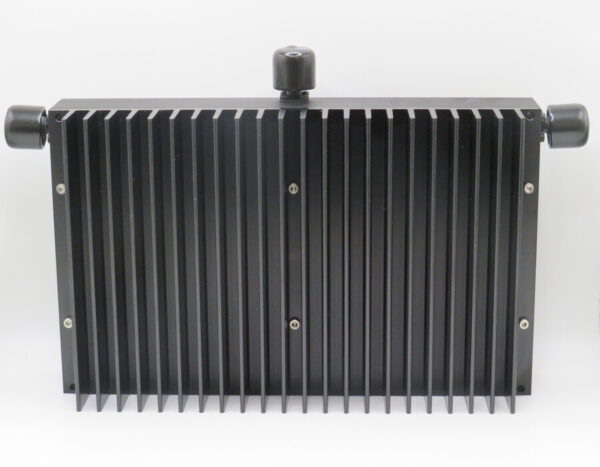

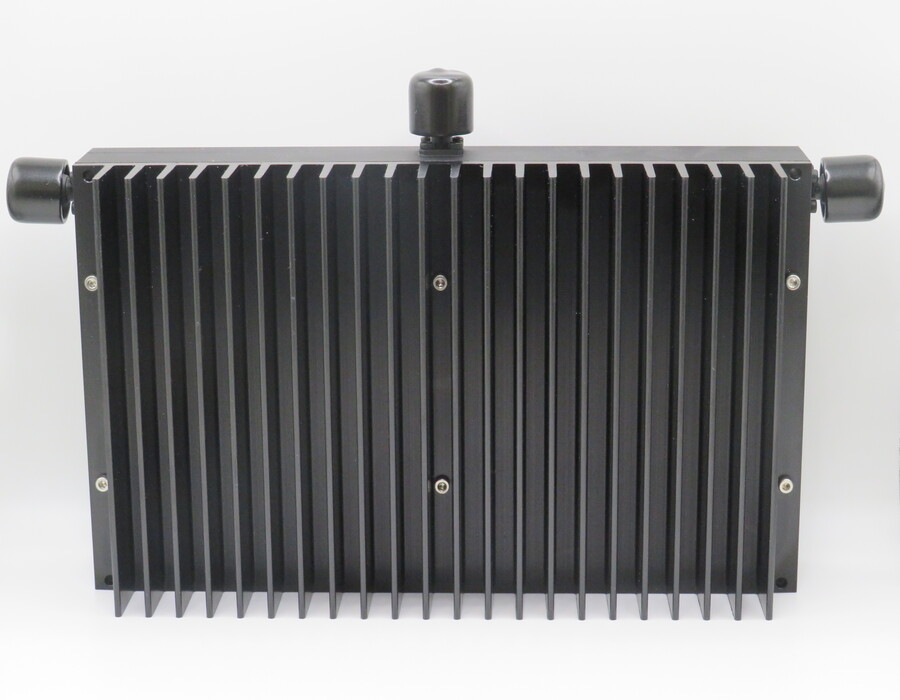

2-Way 390 – 450 MHz Power Combiner – 500 W
CO-2-390-450-500-NF-NF
Part number: 800162This 2-way Gysel power combiner covers the 390-450 MHz frequency range, and can output up to 500 W of continuous power. This device shows a great VSWR <1.3:1 and a high isolation of 15 dB. As all our products it is made in-house and comes a 3 years warranty.
Stock: 1
Additional Information
| Ways | 2 |
|---|---|
| Fmin (MHz) | 390 |
| Fmax (MHz) | 450 |
| Insertion losses (dB) | 0.5 |
| Input VSWR | 1.3:1 |
| Output VSWR | 1.3:1 |
| Isolation (dB) | 15 |
| Power Handling (W) | 500 |
| Input Connectors | N |
| Output Connector | N |
| Weight (g) | 2500 |
| Warranty | 3 years |
Product Description
This Gysel power combiner (Part number: 800162) allows you to merge 2 in-phase signals into 1 on the 390 – 450 MHz frequency range. It can output up to 500 W CW on a large operating temperature range of -40°C to +85°C. Furthermore it allows you to get the best out of your sources by having a low VSWR(<1.3:1), and low insertion losses(<0.5dB) and low phase/amplitude balance. This rugged piece of equipment shows and high isolation (15 dB min) in order to prevent your sources from damaging one another. Moreover as a Gysel Power Combiner it can also be used as a power splitter with the same specifications.
