Dimensions: 180 x 51 x 37.5 mm ( 7.09 x 2.01 x 1.48 Inch(es)).

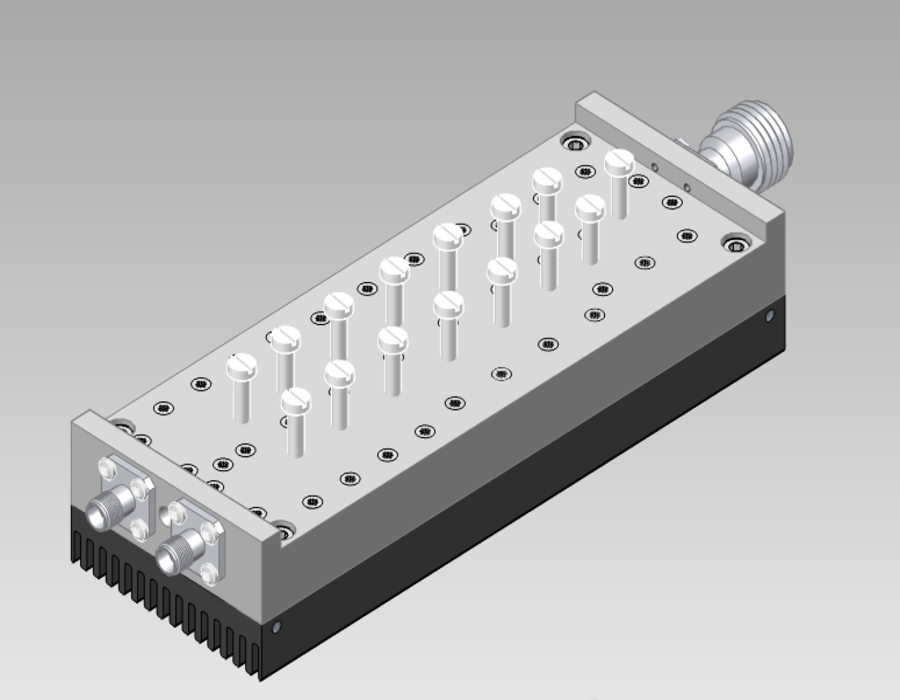

2-Way 1000 – 6000 MHz Power Combiner – 70 W
CO-2-1000-6000-35-SF-NF
Part number: 011149
This 2-way Wilkinson power combiner covers the 1000-6000 MHz frequency range, and can output up to 70 W of continuous power. This device shows a great VSWR <1.5:1 and a high isolation of 12 dB. As all our products it is made in-house and comes a 3 years warranty.
Stock: 0
Additional Information
| Ways | 2 |
|---|---|
| Fmin (MHz) | 1000 |
| Fmax (MHz) | 6000 |
| Insertion losses (dB) | 0.55 |
| Input VSWR | 1.5:1 |
| Output VSWR | 1.6:1 |
| Isolation (dB) | 12 |
| Amplitude Balance (dB) | -/+ 0.2 |
| Phase Balance (°) | 10 |
| Power Handling (W) | 70 |
| Input Connectors | SMA |
| Output Connector | N |
| Warranty | 3 years |
Product Description
This power combiner (PN 011149) allows you to merge 2 in-phase signals into 1 on the 1000 – 6000 MHz frequency range. It can output up to 70 W CW on a large operating temperature range of 0°C to +40°C. Furthermore, it allows you to get the best out of your sources by having a low VSWR(<1.5:1), and low insertion losses(<0.55dB) and low phase/amplitude balance. This rugged piece of equipment shows and high isolation (12 dB min) in order to prevent your sources from damaging one another. Moreover as a Wilkinson Power Combiner it can also be used as a power splitter with the same specifications.
