Dimensions: 68.6 x 50.8 x 25.4 mm ( 2.7 x 2 x 1 Inch(es)).

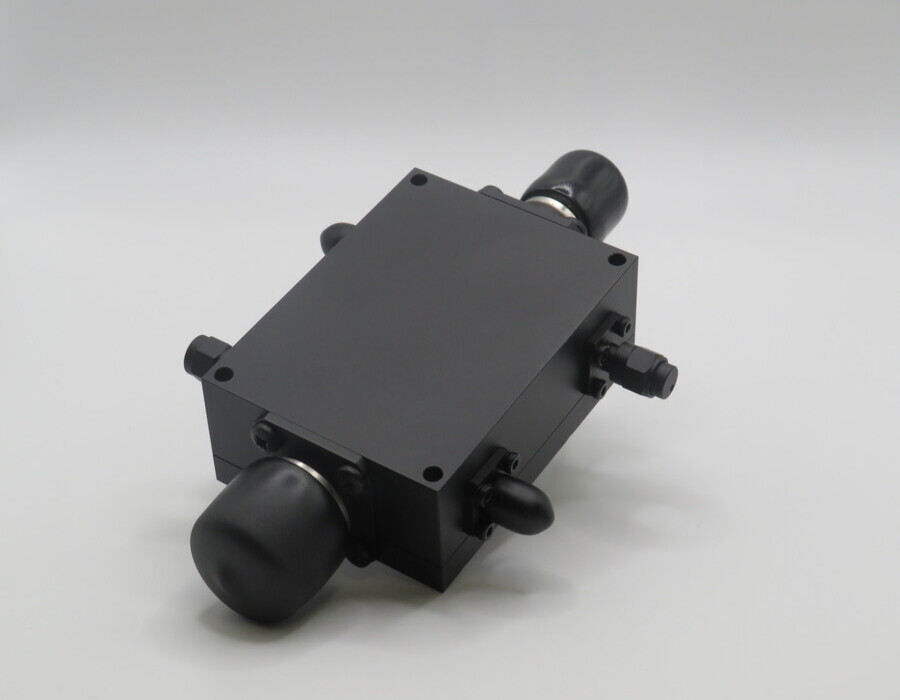

1700-2100 MHz Dual Directional Coupler – 30 dB – 500 W
CD-2-1700-2100-30-30-500-NM-NF-SF
Part number: 001677This 30 dB low loss high power directional coupler covers the range 1700-2100 MHz and provides a great directivity > 27 dB. With only 0,1 dB of insertion loss, this product offers a good VSWR < 1.1:1 and can handle up to 500 W.
Stock: 2
Additional Information
| Fmin (MHz) | 1700 |
|---|---|
| Fmax (MHz) | 2100 |
| Coupling (dB) | 30 |
| Directivity (dB) | 27 |
| Insertion Losses (dB) | 0.1 |
| VSWR (Main line) | 1.1:1 |
| VSWR (Coupling Line) | 1.1:1 |
| Power Handling (W) | 500 |
| Connectors (Main Line) | N |
| Connectors (Coupling Line) | SMA |
| Warranty | 3 years |
Product Description
This Coaxial Coupler 001677 allows you to sample 30 dB of any of your signals ranging 1700 to 2100 MHz and with a continuous power < 500 W CW. Thanks to its low insertion losses < 0,1 dB (excluding coupling losses) and VSWR ( < 1.1:1 on main line and 1.1:1 on the coupled line), this product does not disrupt the signal you want to sample. Furthermore it provides a good directivity > 27 dB which is related to the isolation between input port and coupling port.
Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
Please feel free to ask if you need any customisation or answers to your questions about this product.
