Dimensions: 108 x 173.8 x 90.3 mm ( 4.25 x 6.84 x 3.56 Inch(es)).

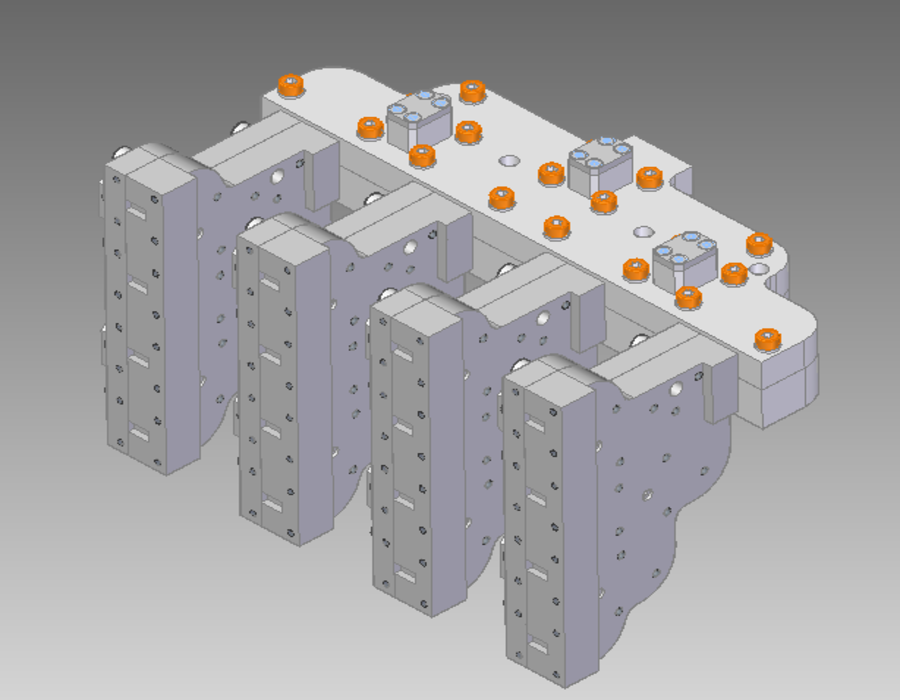

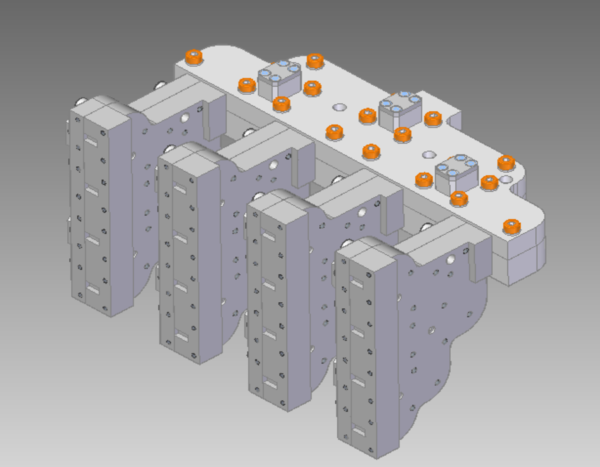

16-Way 27 – 31 GHz Power Combiner – 100 W
CO-16-27000-31000-100-WR28
Part number: 001542
This 16-way power combiner covers the 27-31 GHz frequency range, and can output up to 100 W of continuous power. This device shows a great VSWR <1.25:1 and a high isolation of 20 dB. As all our products it is made in-house and comes a 3 years warranty.
Stock: 0
Additional Information
| Ways | 16 |
|---|---|
| Fmin (MHz) | 27000 |
| Fmax (MHz) | 31000 |
| Insertion losses (dB) | 0.6 |
| Input VSWR | 1.25:1 |
| Output VSWR | 1.6:1 |
| Isolation (dB) | 20 |
| Amplitude Balance (dB) | 1 |
| Phase Balance (°) | 20 |
| Power Handling (W) | 100 |
| Input Connectors | WR28 |
| Output Connector | WR28 |
| Warranty | 3 years |
Product Description
This power combiner (PN 001542) allows you to merge 16 in-phase signals into 1 on the 27 – 31 GHz frequency range. It can output up to 100 W CW on a large operating temperature range of -40°C to +70°C. Furthermore it allows you to get the best out of your sources by having a low VSWR(<1.25:1), and low insertion losses(<0.6dB) and low phase/amplitude balance. This rugged piece of equipment shows and high isolation (20 dB min) in order to prevent your sources from damaging one another. Moreover as a Magic Tee Power combiner it can also be used as a power splitter with the same specifications.
