Dimensions: 211.59 x 211.59 x 89.2 mm ( 8.33 x 8.33 x 3.51 Inch(es)).
16-Way 2100 – 2900 MHz Power Combiner – 240 W
CO-16-2100-2900-15-NF-716F
Part number: 001609

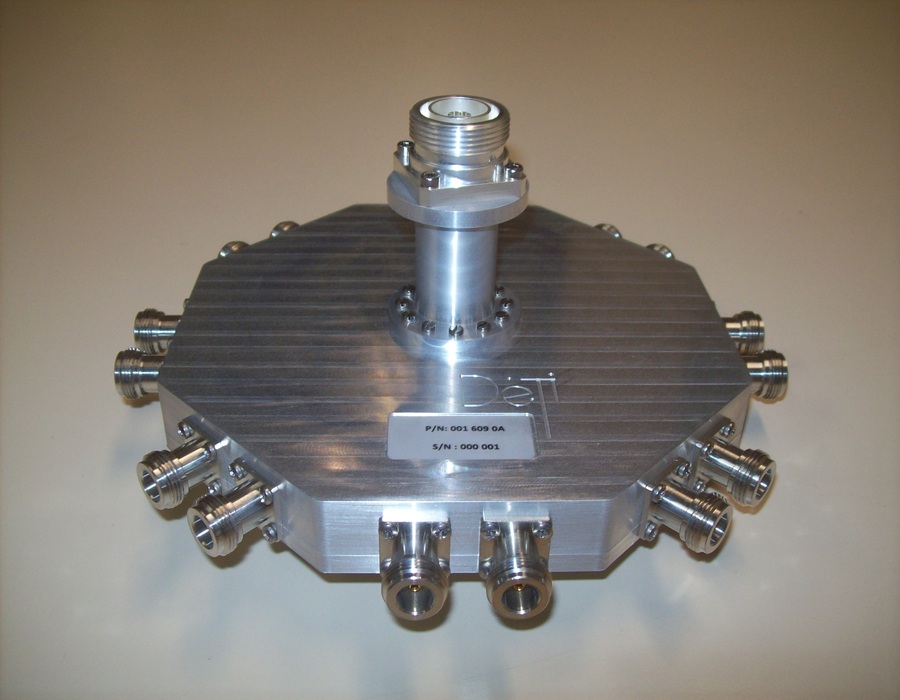

This 16-way radial power combiner covers the 2100-2900 MHz frequency range, and can output up to 240 W of continuous power and up to 20 kW of pulsed power. This device shows a great VSWR and a high isolation of 10 dB. As all our products it is made in-house and comes a 3 years warranty.
Stock: 0
Additional Information
| Ways | 16 |
|---|---|
| Fmin (MHz) | 2100 |
| Fmax (MHz) | 2900 |
| Insertion losses (dB) | 0.3 |
| Output VSWR | 1.4:1 |
| Isolation (dB) | 10 |
| Power Handling (W CW) | 240 |
| Input Connectors | N |
| Output Connector | 7/16 |
| Warranty | 3 years |
| Peak Power (kW) | 20 |
Product Description
This radial power combiner (PN 001609) allows you to merge 16 in-phase signals into 1 on the 2100 – 2900 MHz frequency range. It can output up to 240 W CW of average power and up to 20 kW of peak power. Furthermore it allows you to get the best out of your sources by having a low insertion losses(<0.3dB) and low phase/amplitude balance. This rugged piece of equipment shows and high isolation (10 dB min) in order to prevent your sources from damaging one another.
