Dimensions: 40 x 25.4 x 40 mm ( 1.57 x 1 x 1.57 Inch(es)).
15000-18000 MHz Directional Coupleur – 30 dB – 200 W
CD-1-15000-18000-30-200-TF-TF-SF

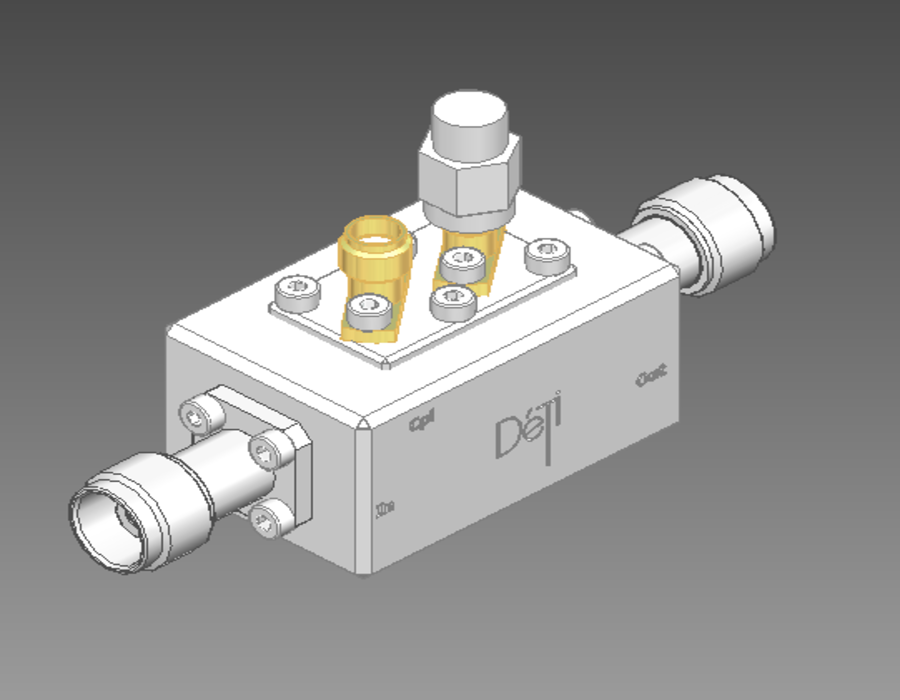

Part number: 011085This 30 dB low loss high power directional coupler covers the range 15000-18000 MHz and provides a great directivity > 20 dB. With only 0,3 dB of insertion loss, this product offers a good VSWR < 1.5:1 and can handle up to 200 W.
Stock: 0
Additional Information
| Fmin (MHz) | 15000 |
|---|---|
| Fmax (MHz) | 18000 |
| Coupling (dB) | 30 |
| Coupling value tolerance (dB) | 1 |
| Directivity (dB) | 20 |
| Insertion Losses (dB) | 0.3 |
| VSWR (Main line) | 1.4:1 |
| VSWR (Coupling Line) | 1.5:1 |
| Power Handling (W) | 200 |
| Peak Power (kW) | 2 |
| Connectors (Main Line) | TNC |
| Connectors (Coupling Line) | SMA |
| Warranty | 3 years |
Product Description
This Coaxial Coupler 011085 allows you to sample 30 dB of any of your signals ranging 15000 to 18000 MHz and with a continuous power < 200 W CW. Please note that this product can also deal with very high peak power up to 2 kW. Thanks to its low insertion losses < 0,3 dB (excluding coupling losses) and VSWR ( < 1.4:1 on main line and 1.5:1 on the coupled line), this product does not disrupt the signal you want to sample. Furthermore it provides a good directivity > 20 dB which is related to the isolation between input port and coupling port.
Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
Please feel free to ask if you need any customisation or answers to your questions about this product.
