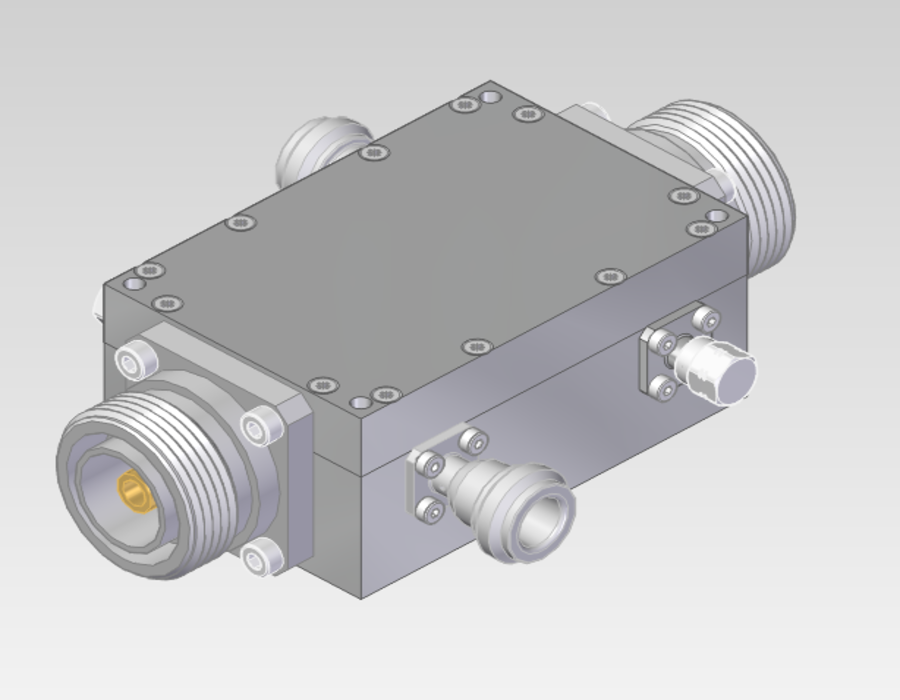

Dimensions: 76.4 x 69 x 34 mm ( 3.01 x 2.72 x 1.34 Inch(es)).
1200-1400 MHz Dual Directional Coupler – 50 dB – 1000 W
CD-2-1200-1400-50-50-1000-716F-716F-NF
Part number: 011100This 50 dB low loss high power directional coupler covers the range 1200-1400 MHz and provides a great directivity > 25 dB. With only 0,15 dB of insertion loss, this product offers a good VSWR < 1.2:1 and can handle up to 1000 W.
Stock: 0
Additional Information
| Fmin (MHz) | 1200 |
|---|---|
| Fmax (MHz) | 1400 |
| Coupling (dB) | 50 |
| Coupling value tolerance (dB) | 1 |
| Directivity (dB) | 25 |
| Insertion Losses (dB) | 0.15 |
| VSWR (Main line) | 1.2:1 |
| VSWR (Coupling Line) | 1.2:1 |
| Power Handling (W) | 1000 |
| Peak Power (kW) | 10 |
| Connectors (Main Line) | 7/16 |
| Connectors (Coupling Line) | N |
| Warranty | 3 years |
Product Description
This Coaxial Coupler 011100 allows you to sample 50 dB of any of your signals ranging 1200 to 1400 MHz and with a continuous power < 1000 W CW. Please note that this product can also deal with very high peak power up to 10 kW. Thanks to its low insertion losses < 0,15 dB (excluding coupling losses) and VSWR ( < 1.2:1 on main line and 1.2:1 on the coupled line), this product does not disrupt the signal you want to sample. Furthermore it provides a good directivity > 25 dB which is related to the isolation between input port and coupling port.
Because it is made on-site, DETI can ensure a quality manufacturing, therefore offering a 3 year warranty.
Please feel free to ask if you need any customisation or answers to your questions about this product.
